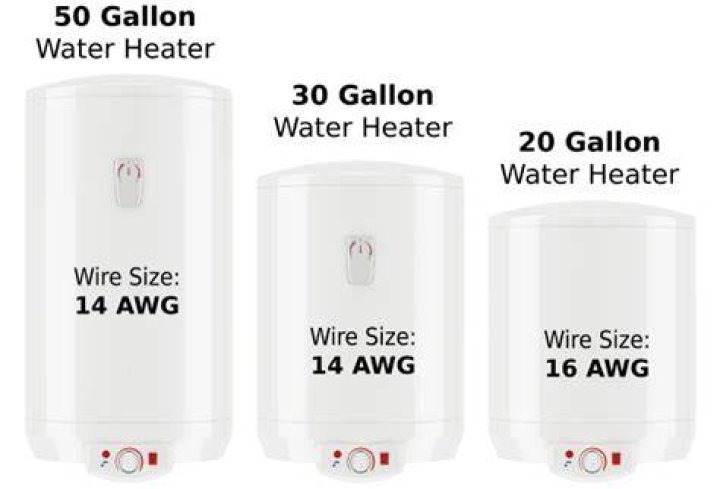

Water Heater Wire Size

Which cable is used for the electric water heater?

Electric water heaters generally require a dedicated 30A, 240V switch. The wire connecting the control panel to the water heater is usually a Romex 10/2 wire (hot black wire, hot wire marked in white, copper wire with grounding only). to the ground).

So you may also be wondering what wire size is needed for an electric water heater?

Standard flow meters and pipe sizes Boiler cables with cable sizes for heat demand. For example, a 20A water heater requires a 12-gauge cable, a 25A water heater requires a 10A cable, and a 30A-40A water heater requires an 8-gauge cable.

Can I also use 10 3 wires for the water heater?

With a 10/3 guide. But there is no neutral connection to the boiler, only a ground. In a cable unit, it is still legal to re-identify white as a hot conductor. Use the right colors in the cable for extra warmth.

So we can also ask ourselves how to connect an electric boiler?

Understanding Water Heater Wiring The circuit board typically contains a 30 amp two-pole switch and a 102 non-metallic (NM) motor cable. In the water heater, the black wire from the circuit is connected to the black wire from the water heater and the white wire from the circuit is connected to the white wire of the water heater.

What wire size do I need for a 4,500 watt water heater?

A 4500 watt element requires a 10/2 wire and a 30 A (220 volt) switch. 3800 can be connected with a 12/2 cable and a 20 amp switch.

What happens if you connect a boiler to the back?

If you mix in the wrong direction, the deep tube will remove the water from the bottom of the tank. It will be hot first, then it will be cold once the heavier and colder water that enters the top of the tank to replace the hot water has a chance to sink to the bottom.

Can you install an electric water heater by yourself?

Electric Water Heaters Installation: Step-by-Step DIY Instructions. Installing an electric water heater isn't as difficult as you might think, especially if you're a DIY enthusiast. But before you get down to business, keep in mind that in addition to electrical work, you will also need to perform some basic plumbing work.

What size do I need for a 40 gallon electric water heater?

It can also stand beside him.

How many watts?

Your average 30- or 40-gallon water heater is 4,500 watts and typically works with a 30-amp breaker. A 270 liter (60 gallon) tank with a 4,500 watt heater produces 259 liters of hot water in that first hour. A 40 gallon (180 liter) tank with a 3000 watt heating capacity provides 173 liters of hot water. On average, 50 to 70 liters of warm water are needed for a bath and 40 to 60 liters for a shower.

What cable do I need for 220 volts?

If you connect a 220V, 20A outlet to power a power tool, you can use the same 12 wires that you would use for a 110V, 20A circuit. Note that the cable must have an additional hot wire. If the device draws 30 amps, you will need a different type of plug and the cable should be 10 meters.

What size do I need for a 30 amp switch?

Each circuit protected with 30 amps must use at least 10g of copper or 8g of aluminum. Longer lengths may require a cable size upgrade. In your case, use at least 10 pieces of copper for your soldering iron, regardless of the distance from the control panel.

Which cable is used for the boiler?

The standard for the water heater is No. 10, two ground conductors (10/2) and a 30 amp circuit breaker for a water heater. If you're using a cable, run # 10 and replace the switch to get it right once and for all.

What wire do you use for an electric oven?

Electrical range 220-240 volts, 60 Hertz, properly grounded circuit at 40 amps or No. wire fuse. You need a No. 6 for a 50 amp breaker.

How do I connect a 240 volt electric water heater?

Electric water heaters generally require a special 30A, 240V switch.The wire connecting the control panel to the water heater is usually a Romex 10/2 wire (hot black wire, hot wire marked in white, copper wire with grounding only) to the ground).

How many amps are 4500 watts?

18.

75 amps

How much does it cost to install a water heater?

Nationally, the average cost of installing a water heater is between $ 500 and $ 1,000, depending on the type and size of the water heater (measured in liters) and the prices charged by the installer. The cost of installing water heaters usually consists of two parts: the cost of the device and the cost of labor.

How do I install an electric water heater?

To install a water heater Find a location for the new water heater. Hold the water heater against the wall you want. Turn off the water supply to the nearby sink by turning on the tap. Cut the cold water supply line with a pipe cutter near the place where the heaters are to be installed.

How does an electric water heater work?

An electric water heater works in much the same way as a gas water heater. It conducts cold water through the immersion tube (1) and heats it through the electrical resistances (2) in the tank. Hot water rises in the kettle and is carried throughout the house via the heating pipe (3).
